Helios AS low-pressure peristaltic pumps

Fluimac Helios AS low-pressure peristaltic dosing pumps are suitable for applications that need precise, even and reliable dosing – including corrosive, viscous and abrasive liquids, with no risk of contamination. They are efficient, durable, reliable and easy to use in various industries and in laboratories. The pumps are self-priming and can run dry for long periods, so they keep working even in harsh conditions, and the low maintenance requirements and easy service access reduce operating costs. Peristaltic pumps work on the principle of peristalsis: the rollers of the rotor squeeze a flexible hose, and their movement pushes the liquid forward while the hose behind them recovers and draws in more liquid. The liquid touches only the inside of the hose – there are no valves or seals, so there is no risk of contaminating the product. The series comes in three versions – fixed flow rate (FX), mechanical variator (VX) and gearmotor with inverter (IX), with flow rates up to 2800 l/h, pressure up to 4 bar, viscosity up to 15,000 cps and suction lift up to 6 m. Learn more about peristaltic pump technology here.

Advantages

  • Precise and even dosing
  • Self-priming – suction lift up to 6 m
  • Can run dry for long periods
  • No valves or seals – the liquid only touches the hose
  • Suitable for corrosive, viscous (up to 15,000 cps) and abrasive liquids
  • Easy maintenance and low operating costs

Applications

  • Chemical industry
  • Water treatment
  • Paints and coatings
  • Flexographic printing
  • Textile industry
  • Paper industry
  • Ceramics industry
  • Food industry and cosmetics
  • Mining
  • Special vehicles
Model Flow regulation Max. flow rate Max. pressure Max. viscosity Suction lift
l/h bar cps m
AS FX Fixed flow rate 2800 4 15 000 6
AS VX Adjustable flow rate with mechanical variator 2800 4 15 000 6
AS IX Adjustable flow rate with gearmotor and inverter 2800 4 15 000 6
Helios AS FX – перисталтична дозираща помпа

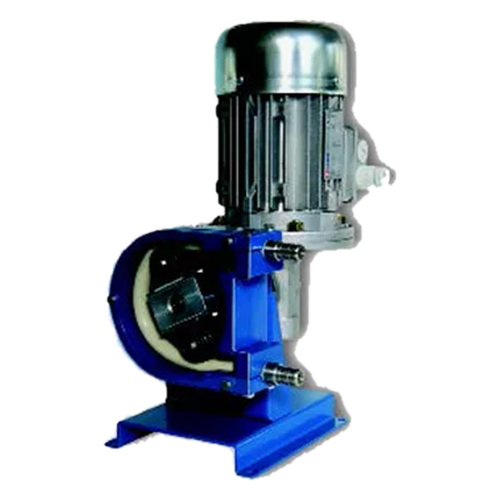

Helios AS FX

Low-pressure peristaltic dosing pump with fixed flow rate: flow rate up to 2800 l/h, pressure up to 4 bar, viscosity up to 15,000 cps, suction lift up to 6 m. Self-priming, can run dry.
Learn more
Helios AS VX – перисталтична дозираща помпа

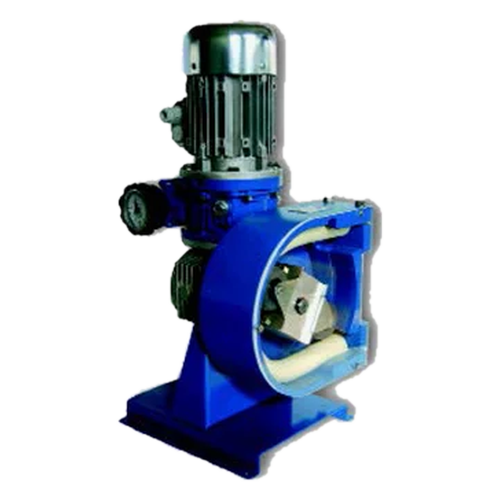

Helios AS VX

Low-pressure peristaltic dosing pump with flow regulation by mechanical variator: flow rate up to 2800 l/h, pressure up to 4 bar, viscosity up to 15,000 cps, suction lift up to 6 m. Self-priming, can run dry.
Learn more
Helios AS IX – перисталтична дозираща помпа

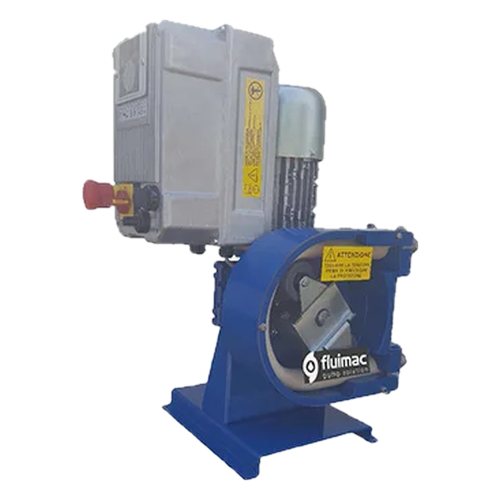

Helios AS IX

Low-pressure peristaltic dosing pump with flow regulation by gearmotor and inverter: flow rate up to 2800 l/h, pressure up to 4 bar, viscosity up to 15,000 cps, suction lift up to 6 m. Self-priming, can run dry.
Learn more
