Flap Phoenix FP400
Fluimac Flap Phoenix FP400 is an air-operated double diaphragm pump (AODD) with flap (FLAP) valves and an AISI 316 stainless steel body. Instead of ball valves the pump uses flap valves (DN40) that pass solids up to ~20 mm – it is suitable for sludge and slurry with coarse particles, wastewater, dewatering in mines and quarries and any fluids with suspended solids. The maximum flow rate is 380 l/min and the maximum head is 80 m. The pump is self-priming, can run dry, can be fully submerged and works at temperatures up to +95 °C. It holds an ATEX certificate for zone 2. Learn more about the technology and advantages of Phoenix pumps here.
See also the applications: Submersible Phoenix (submerged installation in the liquid) and Drum Phoenix (installation on a drum or container).
- Fluid connection: 1 1/2″ BSPP
- Air connection: 1/2″ BSPP

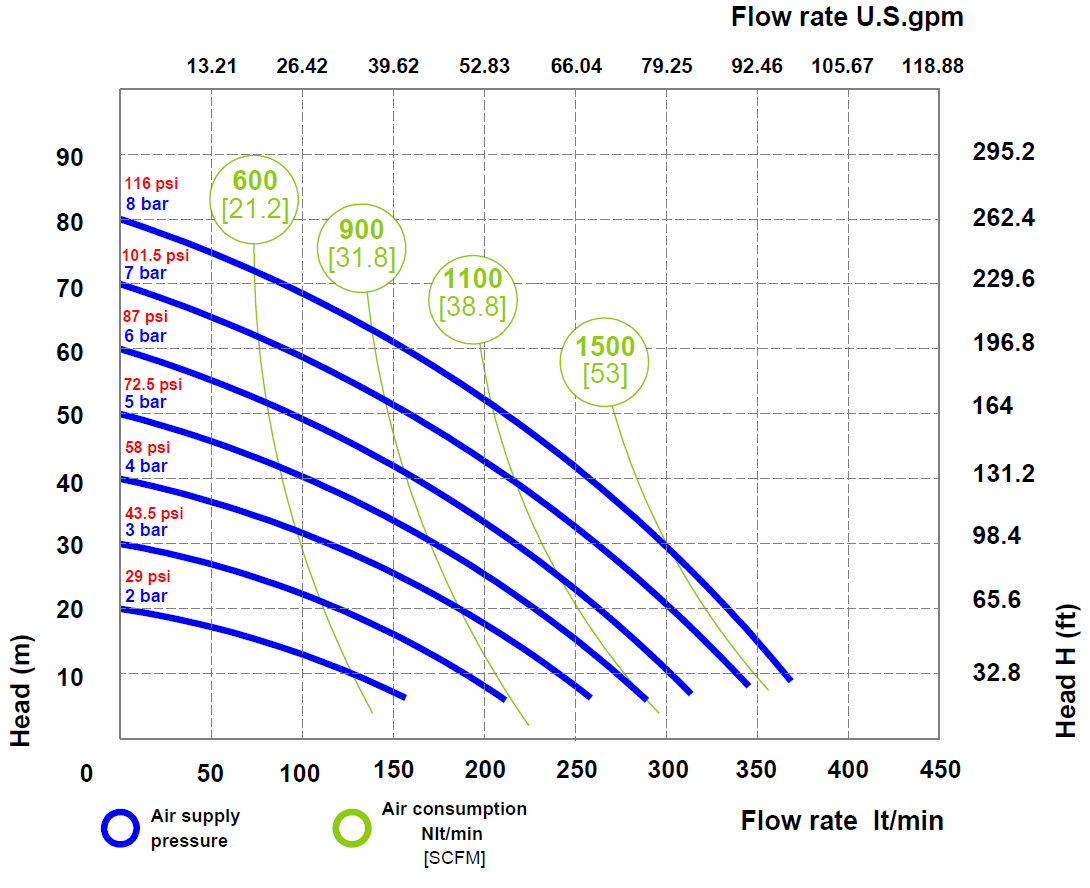

- Maximum flow rate: 380 l/min
- Maximum air pressure: 8 bar
- Maximum head: 80 m
- Max. suction lift (dry): 5 m
- Max. suction lift (wet): 9.8 m
- Maximum size of passing solids: ~20 mm
- Valves: flap (FLAP) DN40
- Noise level: 78 dB
- Maximum viscosity: 40,000 cps
- Displacement per stroke: 1200 CC ~
- Body materials: stainless steel AISI 316
- Weight: 25.3 kg
- Temperature: -20 °C +95 °C
- ATEX marking (gas): II 3/3 G Ex h IIB T4 Gc
- ATEX marking (dust): II 3 D Ex h IIIB T135°C Dc X

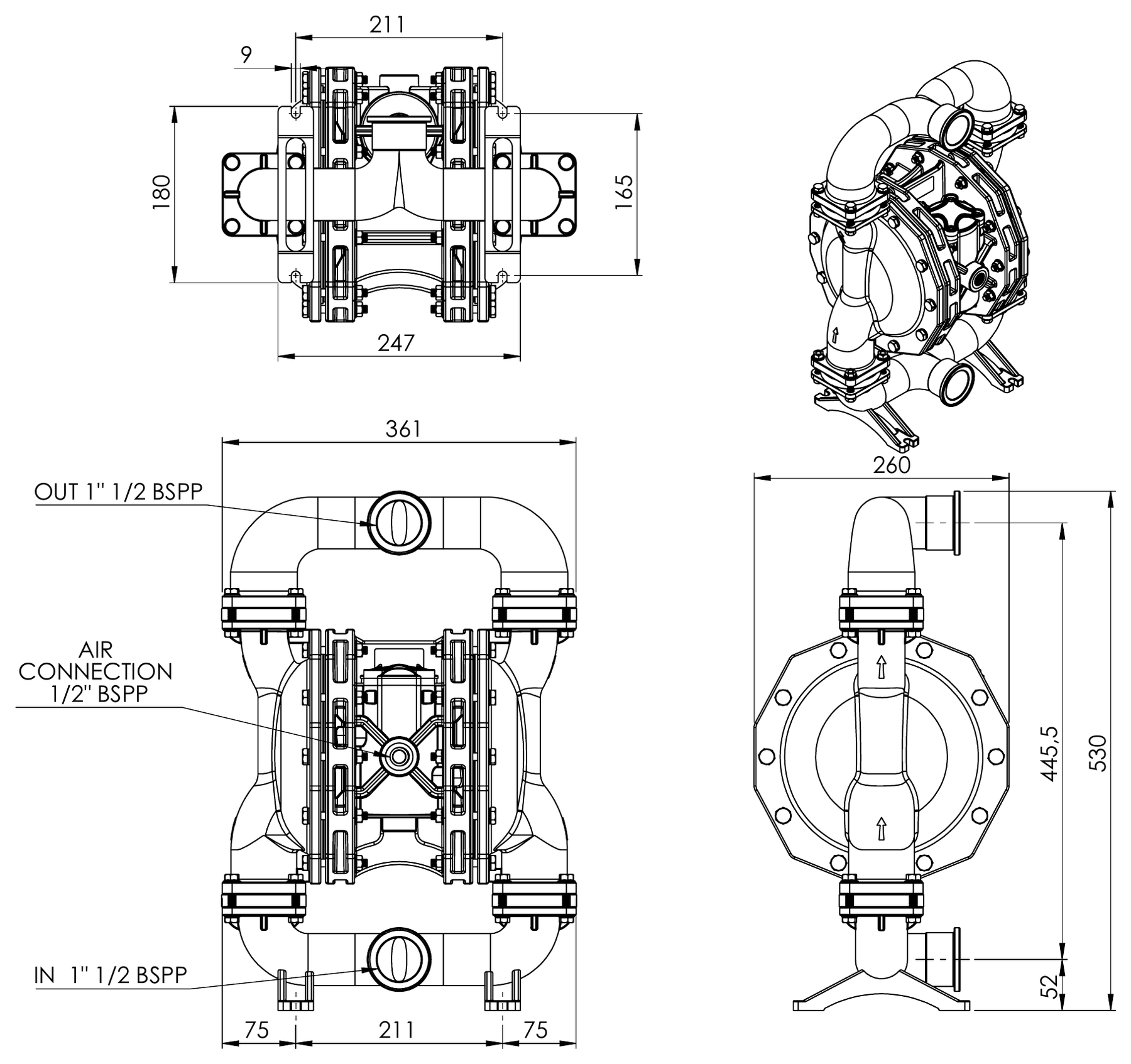

Dimensions
SS AISI 316
| Model | Casing | Diaphragm | Balls | Seats | Seals | Connections | Atex | Inlet/outlet |
|---|---|---|---|---|---|---|---|---|
| FP0400 | S = SS | HT = HYTREL+PTFE MT = SANTOPRENE+PTFE H = HYTREL W = SANTOPRENE H.R. D = EPDM N = NBR | - | FLAP VALVES DN40 | T = PTFE | 1 = BSPP 2 = FLANGED 5 = NPT | - = zone 2 | EF = STANDARD |
