Phoenix ATEX P55
Fluimac Phoenix ATEX P55 is an air-operated double diaphragm pump (AODD) certified to ATEX for use in explosive atmospheres – zone 1 and zone 2 (gases and dusts). The body is made of conductive materials (PP+CF, PVDF+CF, ALU, SS) that prevent static electricity from building up. The maximum flow rate is 55 l/min at a maximum head of 80 m, and the pump handles liquids with a viscosity of up to 15,000 cps and solids up to 3.5 mm. It is suitable for petrochemicals, paint and coating production, flexographic printing, and the automotive and food industries. Learn more about the technology and advantages of Phoenix pumps here.
See also the applications: Submersible Phoenix (submerged installation in the liquid) and Drum Phoenix (installation on a drum or container).
- Fluid connection: 1/2″ BSPP
- Air connection: 1/4″ BSPP
- Maximum flow rate: 55 l/min
- Maximum air pressure: 8 bar
- Maximum head: 80 m
- Max. suction lift (dry): 5 m
- Max. suction lift (wet): 9.8 m
- Maximum size of passing solids: 3.5 mm
- Noise level: 70 dB
- Maximum viscosity: 15,000 cps
- Displacement per stroke: 140 CC ~
- Body materials: PP+CF, PVDF+CF, ALU, SS
- Weight: PP+CF – 3.8 kg, PVDF+CF – 4.8 kg, ALU – 3.8 kg, SS – 6.8 kg
- Max. temperature: PP+CF – 65 °C, PVDF+CF – 90 °C, ALU – 95 °C, SS – 95 °C
- ATEX marking (gas): II 2/2 G Ex h IIC T4 Gb
- ATEX marking (dust): II 2 D Ex h IIIB T135°C Db X
Dimensions

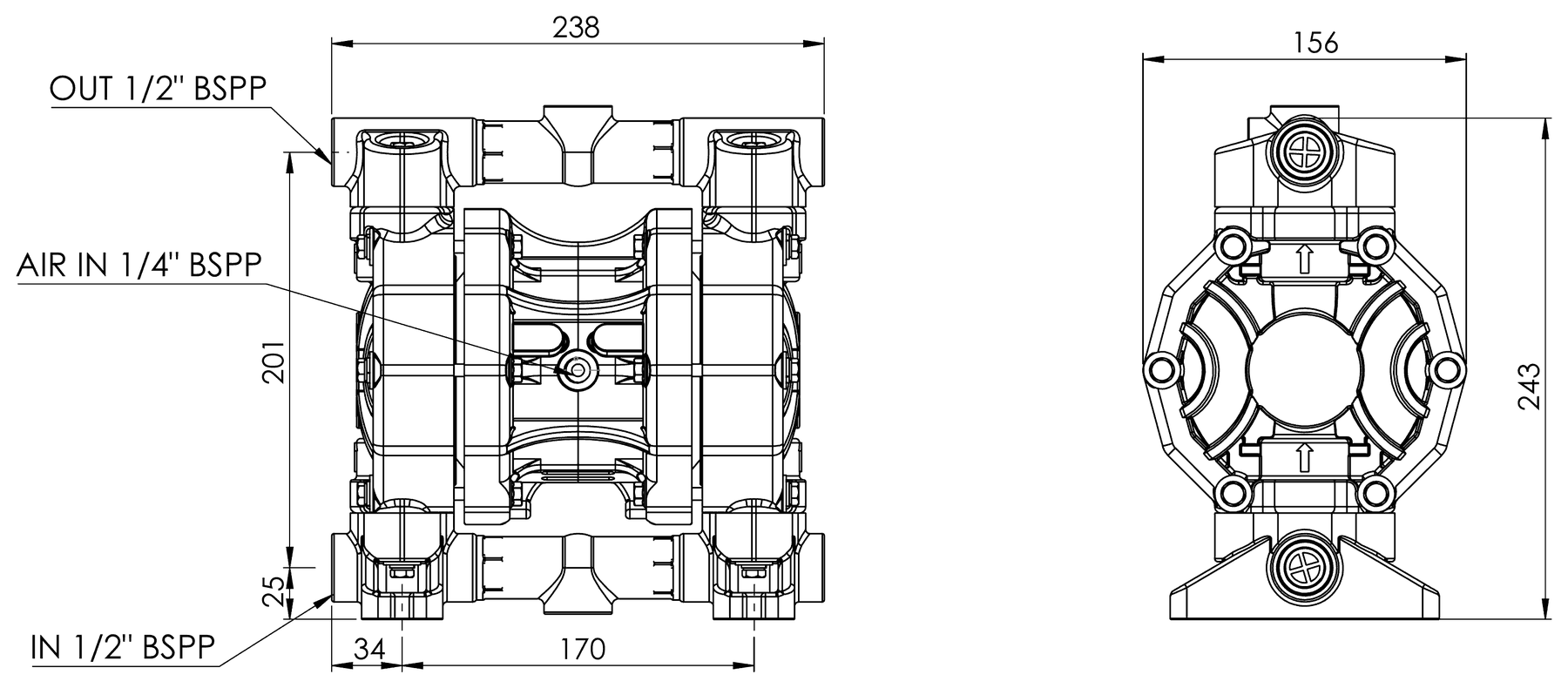

PP+CF / PVDF+CF

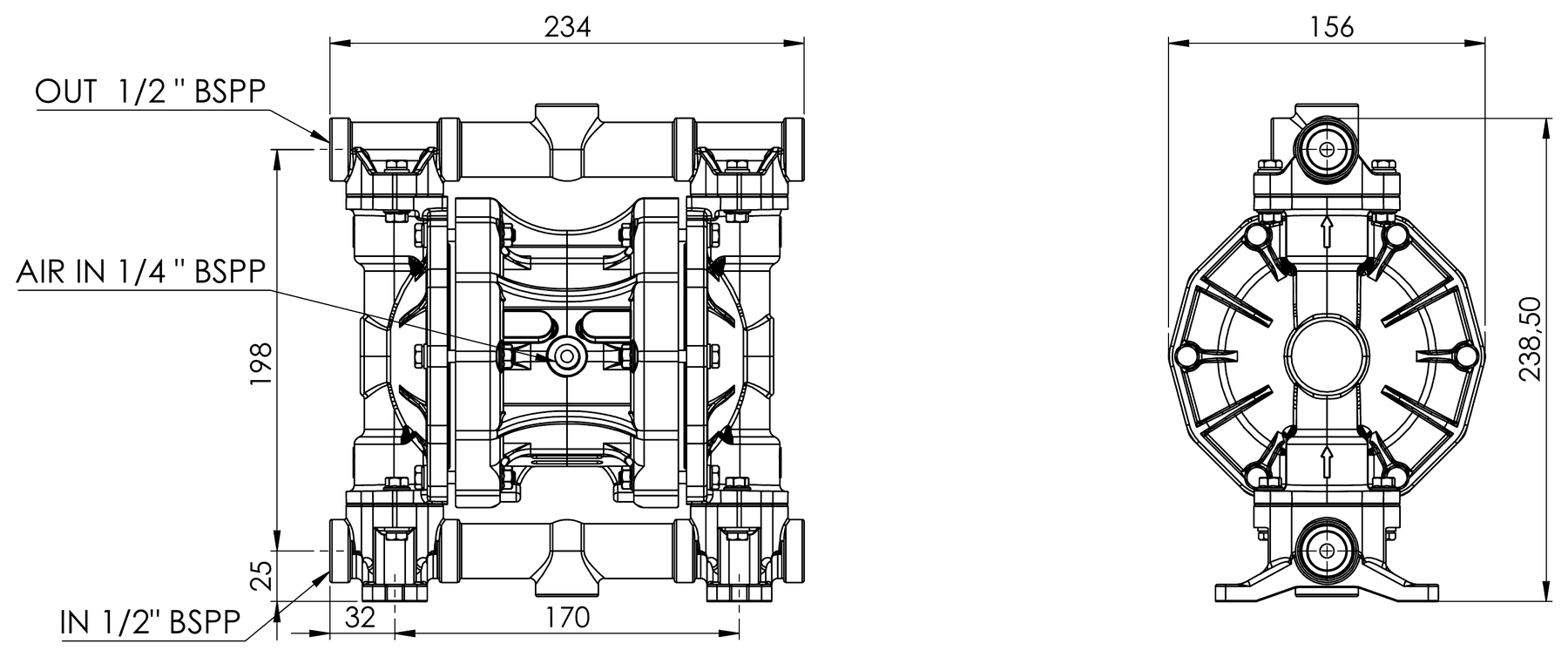

ALU

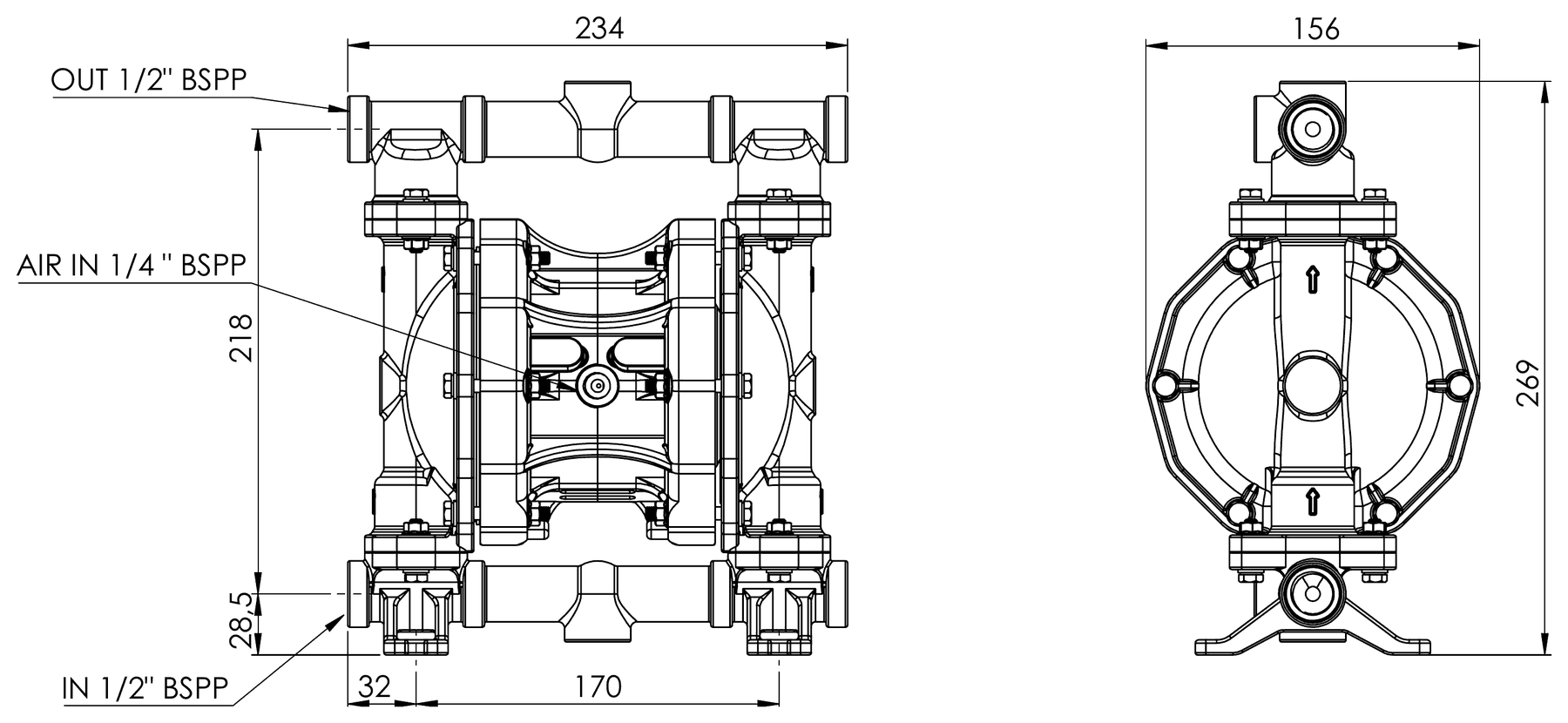

SS AISI 316
| Model | Casing | Diaphragm | Balls | Seats | Seals | Connections | Atex | Inlet/outlet |
|---|---|---|---|---|---|---|---|---|
| P0055 |
PC = PP+CF KC = PVDF+CF A = ALU S = SS |
HT = HYTREL+PTFE MT = SANTOPRENE+PTFE H=HYTREL W = SANTOPRENE H.R. D=EPDM N=NBR |
T = PTFE S = SS D = EPDM N = NBR |
P = PP K = PVDF S = SS Z=PE-UHMWE |
D = EPDM V = VITON N = NBR T = PTFE |
1 = BSPP 2 = FLANGED A = BSPP WITH RING 5 = NPT E = NPT WITH RING |
X = zone 1 | AB = STANDARD |
