- Fluid connections: 2'' BSP DN 50
- Air connections: 3/4'' BSP
- Max flow-rate: 700 l/min
- Max air pressure: 8 bar
- Max delivery head: 80 m
- Max Suction Lift Dry: 5 m
- Max Suction Lift Wet: 9.8 m
- Max Solid passing: 8.5 mm
- Noise level: 78 db
- Max Viscosity: 50.000 cps

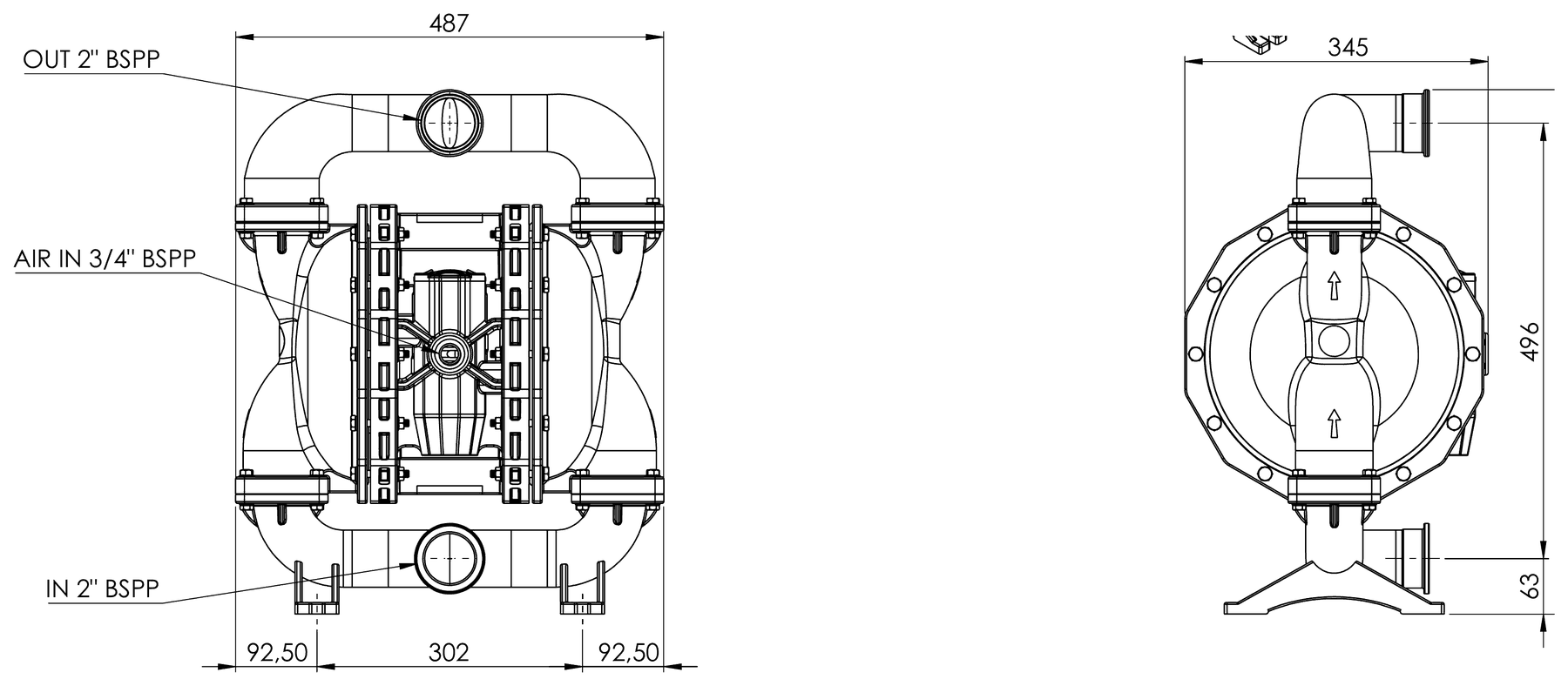

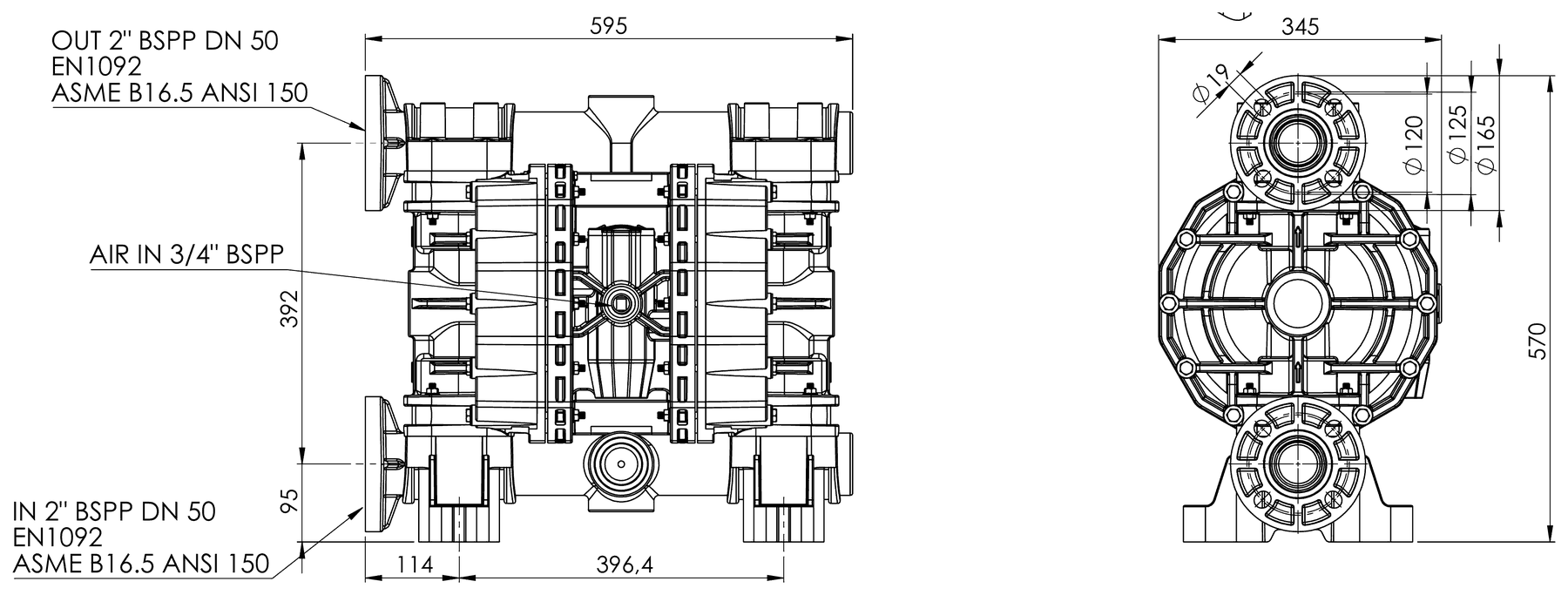

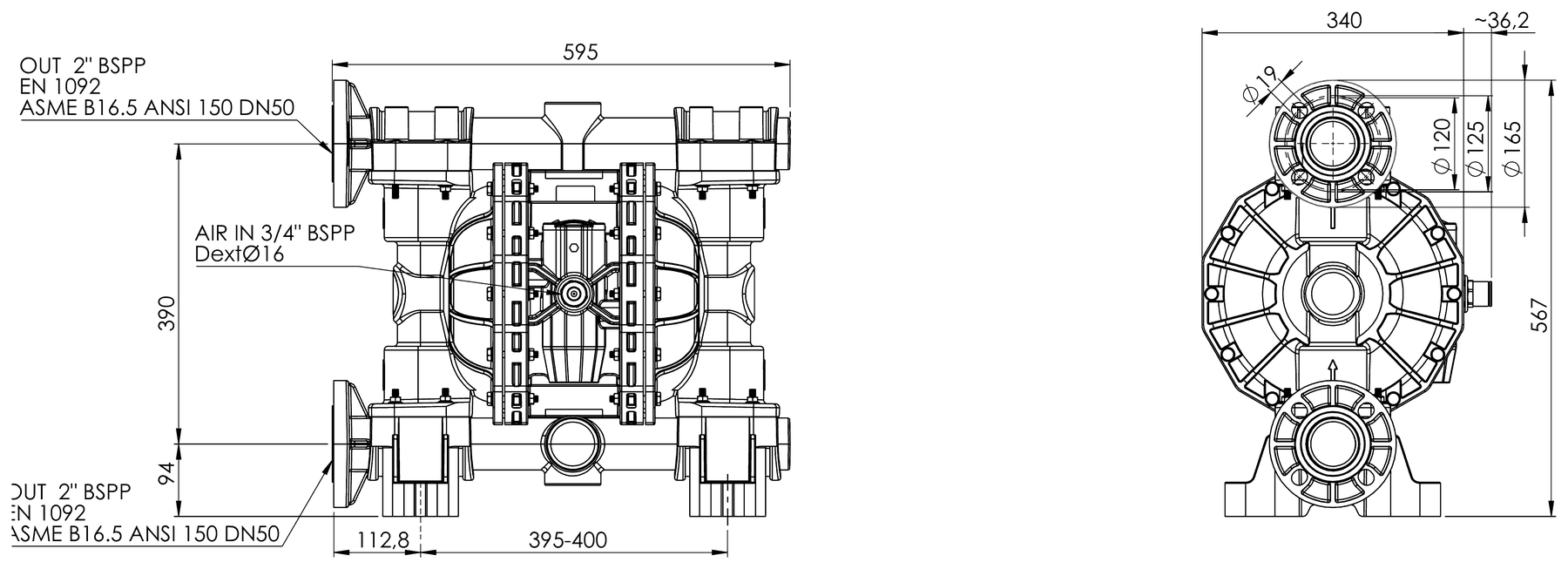

| PP | PVDF | POMc | AISI | |
|---|---|---|---|---|
| A (mm) | 595 | 595 | 595 | 487 |
| B (mm) | 345 | 345 | 345 | 345 |
| C (mm) | 565 | 565 | 560 | 599 |
| Weight (kg) | 31 | 36 | 36 | 46 |
| Max temperature | 65 | 95 | 95 | 95 |
| Model | Casing | Diaphragm | Balls | Seats | Gasket | Connections | Atex | Ports |
|---|---|---|---|---|---|---|---|---|
| P0700 | P = PP KC = PVDF + CF A = ALU | HT = HYTREL+PTFE MT=SANTROPENE+PTFE H=HYTREL M=SANTOPRENE D = EPDM N = NBR | T = PTFE S = SS D = EPDM N = NBR | P = PP K = PVDF A = ALU S = SS Z=PE-UHMWE | D = EPDM V = VITON N = NBR T =PTFE | 1 = BSP 2=FLANGED 5 = NPT | - = zone 2 | AB = STANDART EF = STANDART AISI 316 |
