- Fluid connections: 3'' BSP DN 80
- Air connections: 3/4'' BSP

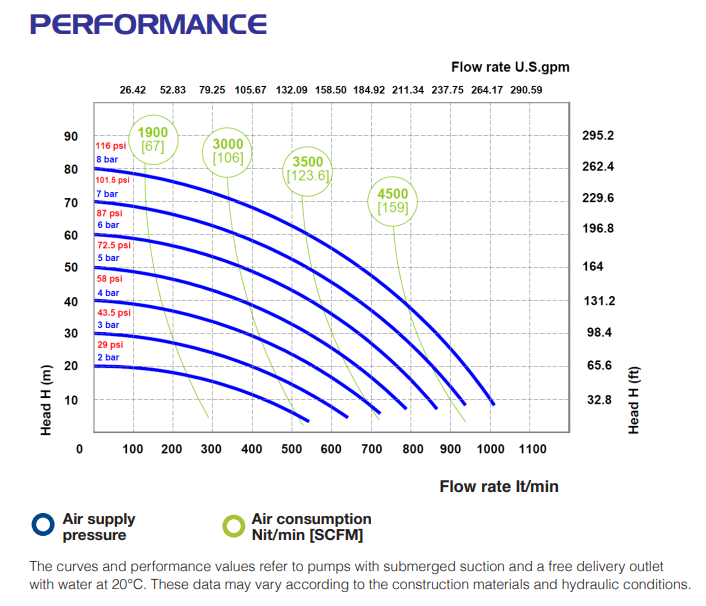

- Max flow-rate: 1050 l/min
- Max air pressure: 8 bar
- Max delivery head: 80 m
- Max Suction Lift Dry: 5 m
- Max Suction Lift Wet: 9.8 m
- Max Solid passing: 10 mm
- Noise level: 78 db
- Max Viscosity: 55.000 cps

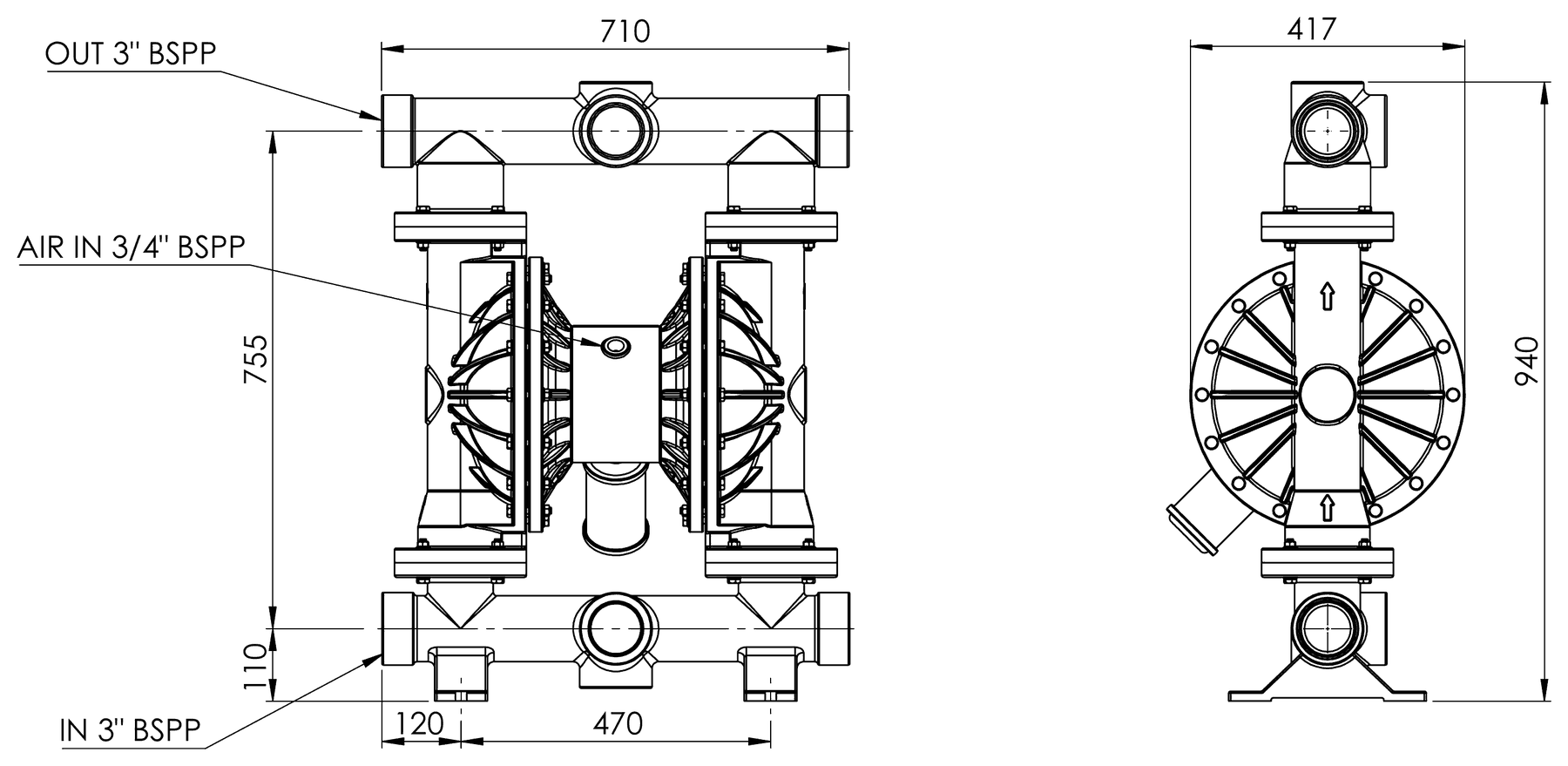

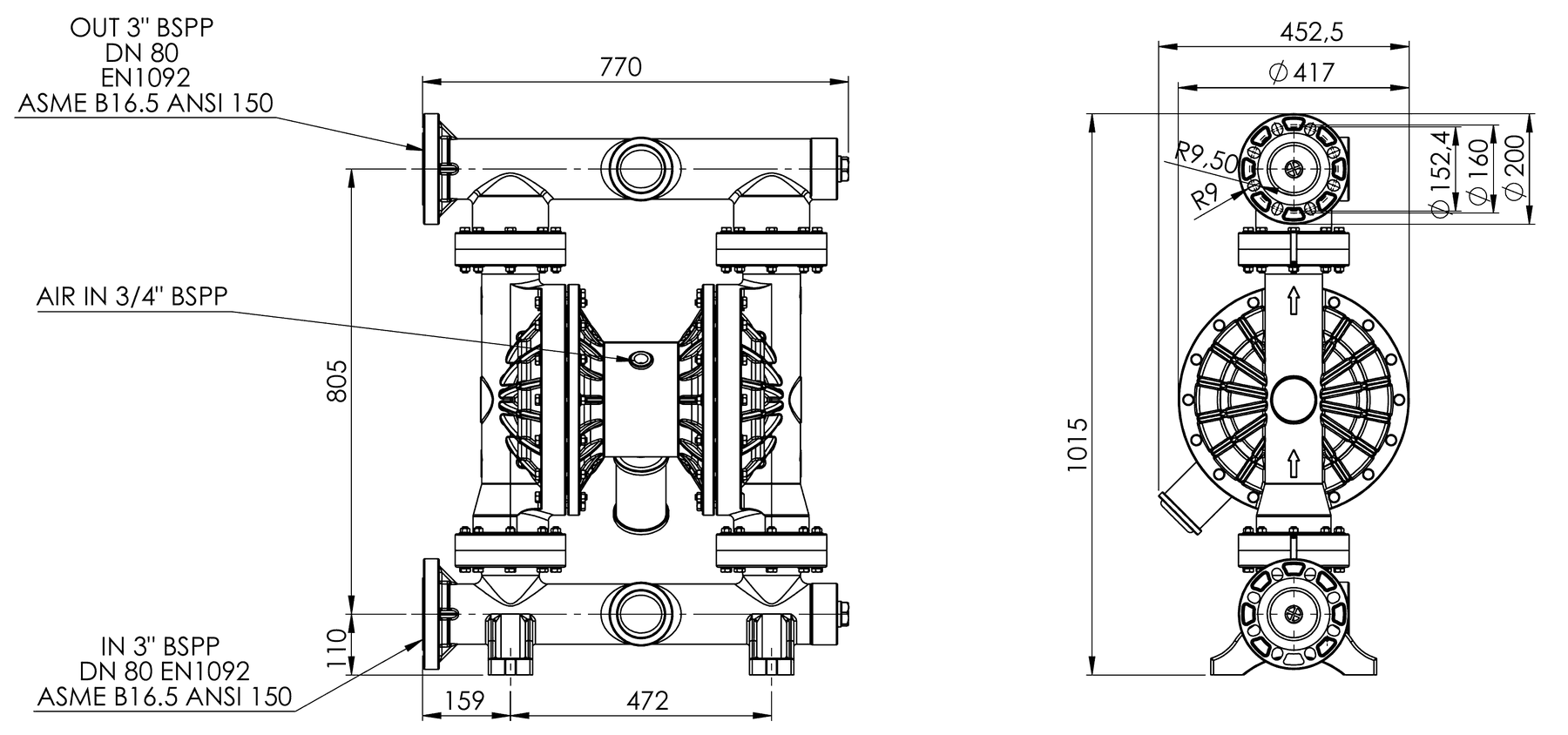

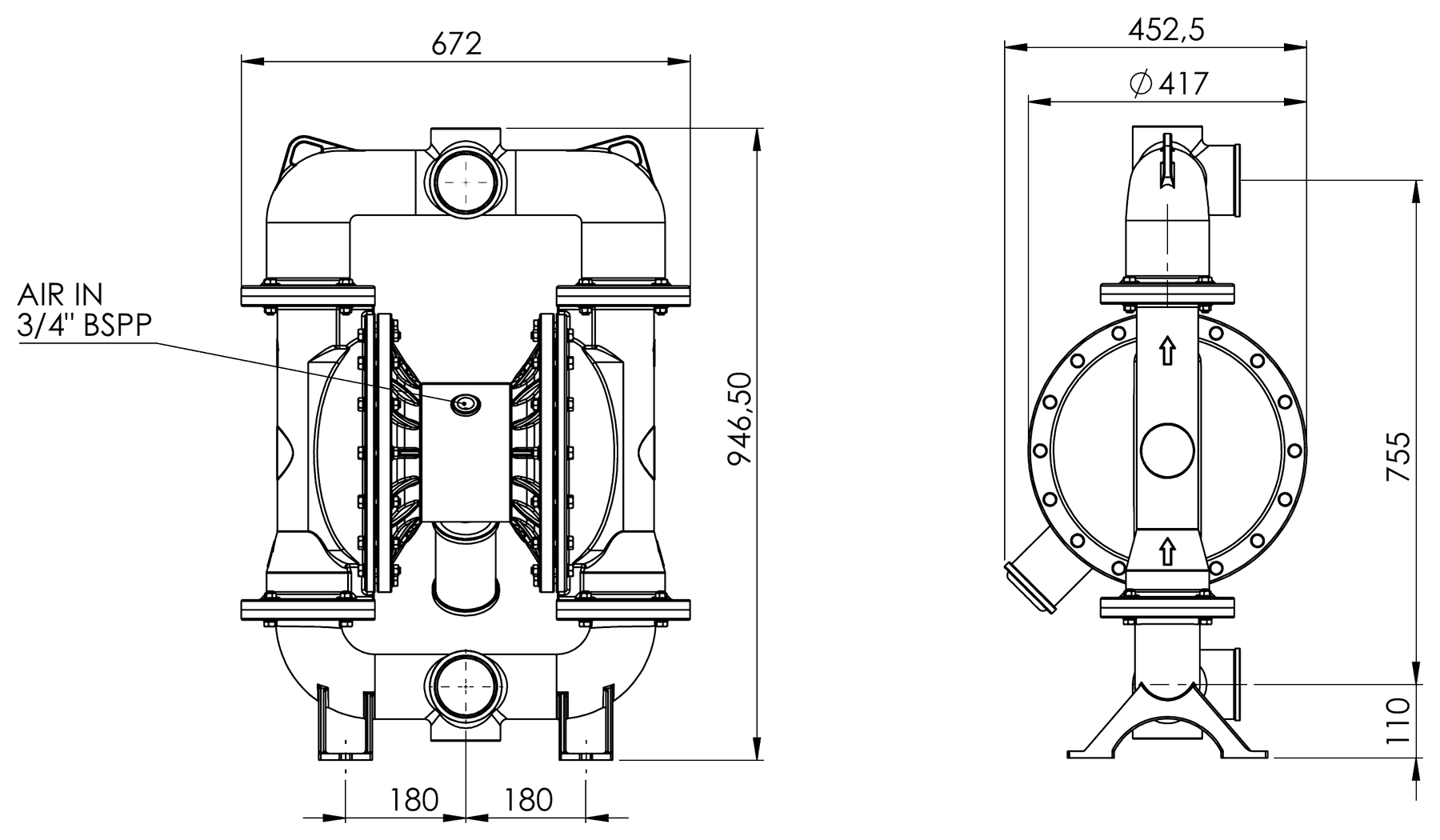

PP | PVDF | POMc | AISI | |
---|---|---|---|---|
A (mm) | 685 | 685 | 570 | 570 |
B (mm) | 417 | 417 | 420 | 420 |
C (mm) | 933 | 933 | 838 | 838 |
Weight (kg) | 50 | 55 | 55 | 120 |
Max temperature | 65 | 95 | 95 | 95 |
Model | Casing | Diaphragm | Balls | Seats | Gasket | Connections | Atex | Ports |
---|---|---|---|---|---|---|---|---|
P1000 | P = PP KC = PVDF + CF A = ALU | MT=SANTROPENE+PTFE H=HYTREL M=SANTOPRENE | T = PTFE S = SS D = EPDM N = NBR | P = PP K = PVDF A = ALU S = SS
| D = EPDM V = VITON N = NBR T =PTFE | 1 = BSP 2=FLANGED
| - = zone 2 | AB = STANDART |
